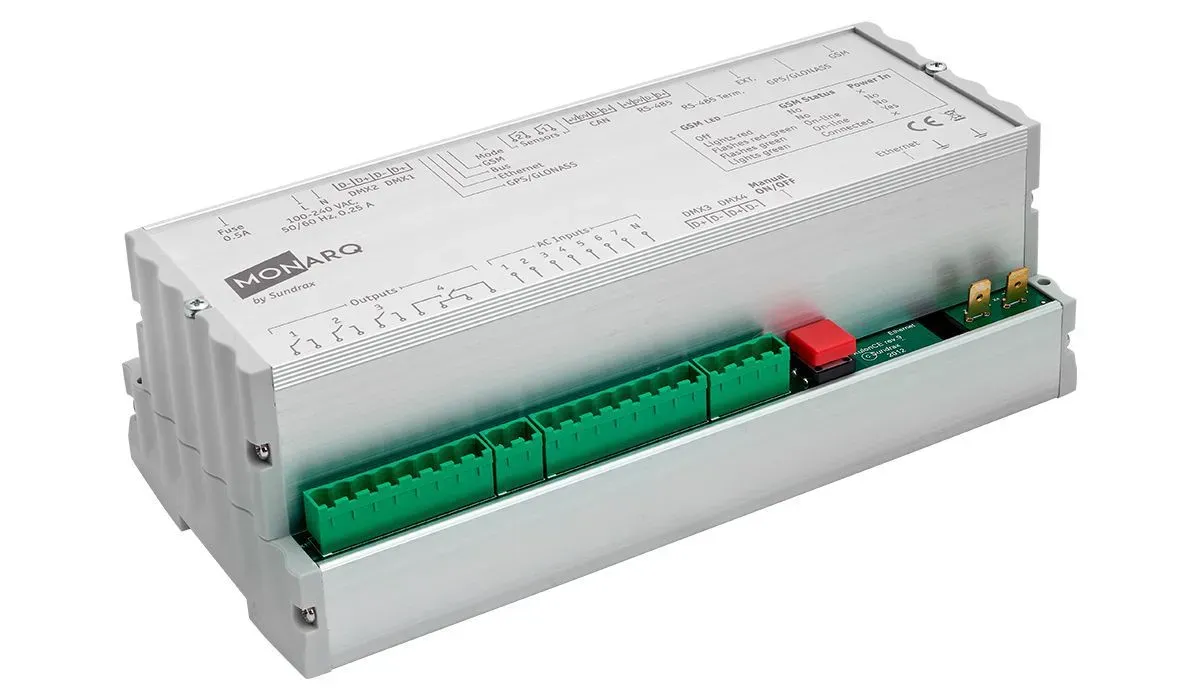

QULON MONARQ
Introducing the QULON MONARQ, the revolutionary architectural lighting control processor engineered to transform the way you manage static and dynamic lighting systems. As the central nervous system of your lighting architecture, the QULON MONARQ empowers you with the finesse and flexibility required for intricate lighting control.
Seamless Integration and Connectivity
QULON MONARQ boasts an impressive ability to direct lighting via a DMX512 protocol through an Ethernet interface, ensuring seamless synchronization across your network. The unit is innovatively designed to function with both direct AC power input ranging from 100-250 V and an internal backup power system for uninterrupted operation.
Remote Access and Robust Control Features
Experience full command over your lighting system either through the intuitive Ethernet web interface or the convenience of remote access via a built-in GSM modem. LED indicators provide real-time status feedback for GSM, GPS, Ethernet, and RS-485 communication, putting vital data at your fingertips.
Designed for Versatility and Resilience
QULON MONARQ thrives in diverse environments, whether placed indoors or within outdoor enclosures. It's meticulously crafted to withstand fluctuating temperatures, and its compact form factor allows for efficient DIN rail mounting, occupying just 12 modules of space.
Embark on a journey towards impeccable lighting management with QULON MONARQ and achieve the perfect atmosphere for any space, at any time.
Manage up to 2048 lighting channels with precision and ease.
Benefit from galvanically isolated DMX512 output, complete with RDM support, for enhanced safety and communication.
Schedule scenarios or tweak settings live for full real-time control.
Leverage full management capabilities with the built-in 2G/3G/4G modem.
Utilize both DMX and Ethernet interfaces for comprehensive network connectivity.
Access electric meter readings and sensor data through the RS-485 port.
Identify electrical faults proactively to maintain system integrity.
Withstand voltages up to 305 V, ensuring protection against power surges.
Rely on non-volatile memory to keep critical data secure.
Navigate using the onboard GPS and astronomical clock for precise timing and scheduling.
- Mechanical:
Housing: aluminum DIN mounted case
Material: metal, plastic
Dimensions, mm: 212(L) x 74,5(H) x 105(W)
Mass: 0.85 kg
Mounting: DIN (12 modules) rail - Power & Electrical:
Input Voltage: ~100-240 V 50/60 Hz
Input Power (max): 5 W
Mains Fuse: 0.5 A - Environment:
Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 95%
IP Rating: IP 20
Certification: CE, RoHS
Warranty: 36 Month - Interfaces and Protocols:
Supported protocols: DMX512, RDM, Ethernet
Navigation: GPS
Serial interface: RS-485, CAN, DMX
Radio Channel: GSM 850/900/1800/1900
Max length of RS-485 line: 1500 m
Lan: Ethernet 10/100 Base-TX
Flash memory: 1 Gb - Inputs / Outputs:
Relay outputs: 4
Voltage control inputs: 7
Max voltage and current at outputs: 240 V, 5 A
Max voltage at inputs: 240 V
Number of sensor inputs: 2
Connectors: terminal blocks 2EDGVC, 15EDGVС - Configuration / Indication:
Setup: locally via Ethernet; Remote via 2G/3G/4G
Indication: LEDs for GSM, GPS, Ethernet and RS-485 activity - Package Contents:
QULON MONARQ
Connector set
- QULON MONARQ, AC, 2DMX, 2G/3G/4G, 4 relays, 7 inputs, RS, CAN, Ethernet, GPS, Region: E
- : QUL-MNR2-4G0407
- : 5060452243702
- QULON MONARQ, AC, 2DMX, 2G/3G/4G, 4 relays, 7 inputs, RS, CAN, Ethernet, GPS, Region: A
- : QUL-MNR2-4GA0407
- : 5060452243719
- QULON MONARQ, AC, 4DMX, 2G/3G/4G, 4 relays, 7 inputs, RS, CAN, Ethernet, GPS, Region: E
- : QUL-MNR4-4G0407
- : 5060452243726
- QULON MONARQ, AC, 4DMX, 2G/3G/4G, 4 relays, 7 inputs, RS, CAN, Ethernet, GPS, Region: A
- : QUL-MNR4-4GA0407
- : 5060452243733
